CMP带胶泥防爆格兰PXSS2K系列

价格 ￥698.60
更新时间
2019-02-14 00:45:01
起订量
20件起批
服务
 资质已审查
发货地
上海市 金山县
货期
近期热度
次浏览
立即询报价

产品介绍

CMP防爆格兰代理商：上海颐品自动化科技有限公司

关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀

CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司

详细资料

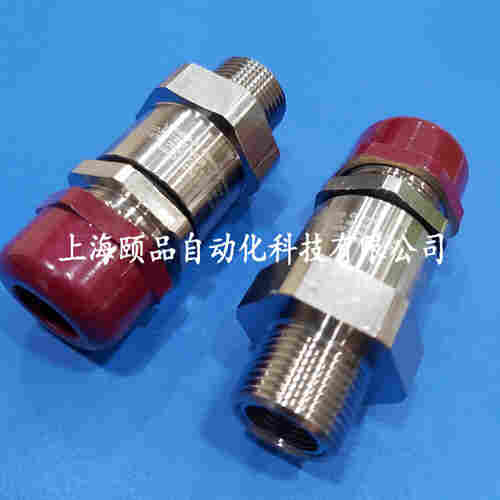

CMP带胶泥防爆格兰（PXSS2K-M20系列）

CMP防爆格兰代理商: 上海颐品自动化科技有限公司

PXSS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Barrier Cable Gland

For all types of Unarmoured & Braid Armour Cables


line;color:#333333;background-color:#F0F0F0;"> Double Seal, Globally Approved, Explosive Atmosphere Barrier Cable Gland

line;color:#333333;background-color:#F0F0F0;"> • Direct & remote installation
• Superior levels of cable retention
• Displacement type environmental seal
• Compound barrier type flameproof seal
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22
• Globally marked, IECEx, ATEX, UL & cCSAus
• Once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types


CERTIFICATES

  •

PRODUCT SELECTION TABLE

CMP防爆格兰代理商: 上海颐品自动化科技有限公司

Cable Gland Size Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
'A' 		Cable Bedding Diameter 'G' Overall
Cable
Diameter
'B' 		Across
Flats
'D' 		Across
Corners
'D' 		Protrusion
Length 'F' 		Combined Ordering Reference
(*Brass Metric) 		Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) 'E' NPT Thread Length
(NPT) 'E' 		NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½' 19.9 ¾" 21 8.6 8.6 3.1 8.6 30.0 33.0 53.1 20S16 PXSS2K 1RA PVC06 0.20
20S M20 15.0 ½' 19.9 ¾" 21 11.7 11.7 6.1 1 20S PXSS2K 1RA PVC06 0.20
20 M20 15.0 ½' 19.9 ¾" 21 12.6 12.9 6.5 14.0 30.0 33.0 54.2 20 PXSS2K 1RA PVC06 0.20
20L M20 15.0 ½' 19.9 ¾" 21 12.6 12.9 10.0 15.9 30.0 33.0 54.2 20L PXSS2K 1RA PVC06 0.20
25 M25 15.0 ¾' 20.2 1" 30 17.5 17.9 11.1 20.0 36.0 39.6 60.0 25 PXSS2K 1RA PVC09 0.33
32 M32 15.0 1' 25.0 1 ¼" 38 23.6 23.9 17.0 26.3 41.0 45.1 61.1 32 PXSS2K 1RA PVC10 0.39
32L M32 15.0 1' 25.0 1 ¼" 38 23.6 23.9 20.0 27.4 41.0 45.1 61.1 32L PXSS2K 1RA PVC10 0.59
40 M40 15.0 1 ¼' 25.6 1 ½" 59 30.0 30.3 22.0 32.0 PXSS2K 1RA PVC13 0.56
50S M50 15.0 1 ½' 26.1 2" 89 36.6 36.9 29.5 38.2 55.0 60.5 65.2 50S PXSS2K 1RA PVC15 0.66
50 M50 15.0 2' 26.9 2 ½" 115 41.0 41.3 35.6 44.0 60.0 66.0 67.6 50 PXSS2K 1RA PVC18 0.73
63S M63 15.0 2' 26.9 2 ½" 115 47.9 48.4 40.1 49.9 70.1 77.1 71.1 63S PXSS2K 1RA PVC21 1.07
63 M63 15.0 2 ½' 39.9 3" 115 53.7 54.0 47.2 55.9 75.0 82.5 70.4 63 PXSS2K 1RA PVC23 1.06
75S M75 15.0 2 ½' 39.9 3" .8 61.9 80.0 88.0 75.3 75S PXSS2K 1RA PVC25 1.30
75 M75 15.0 3' 41.5 3 ½" .4.9 75 PXSS2K 1RA PVC27 1.30
90 M90 24.0 3 ½' 42.8 4" .6 79.4 108.0 118.8 94.8 90 PXSS2K 1RA PVC31 3.02
100 M100 24.0 3 ½' 42.8 4" 200 85.6 85.9 76.0 90.9 123.0 135.3 86.3 100 PXSS2K 1RA LSF33 4.00
Dimensions displayed in millimeters unless otherwise stated
